Kupar K1300AF A4 Document Camera | 13MP High-Definition Document Scanner

KUPAR K1300AF is a high-definition document camera with 13MP auto-focus lens and A4 scanning format. It delivers fast, clear capture for documents, receipts, books and objects, ideal for office scanning, classroom teaching and visual presentation. Stable, easy to use and widely applied for daily business and education scenarios.

Price Interview

Interview

Select the number of specifications

Please check the product information you want!

KUPAR High-Speed A4 Document Scanner with OCR

Product Detail Parameters

Parameters

product model	K1300AF (with algorithm)

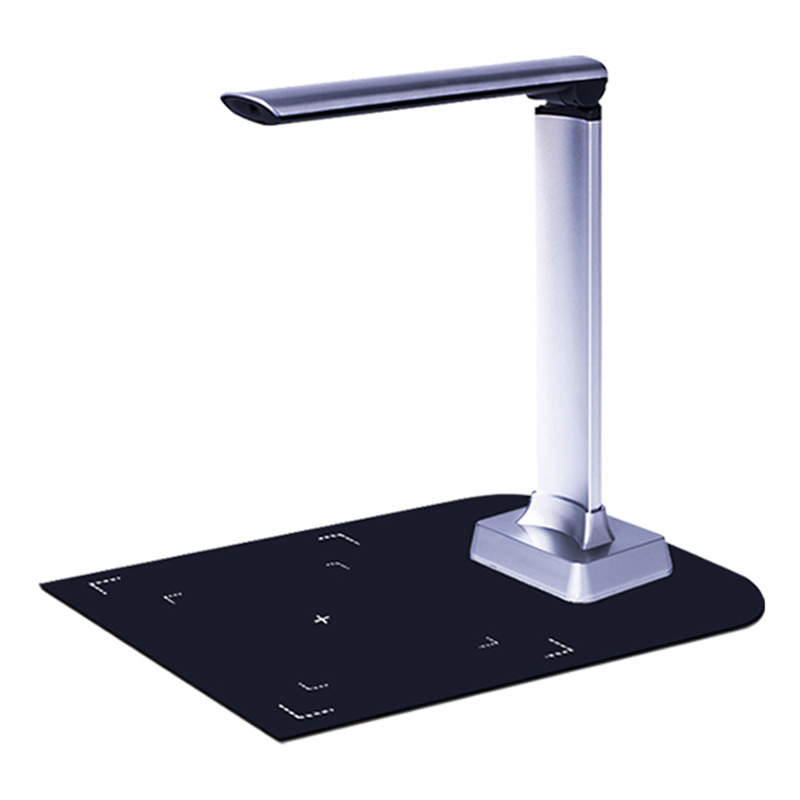

Product picture
Maximum width	A4(A4 and below)
Scanning element	CMOS
Main camera sensor resolution	Resolution @ Frame Rate
	3840*2880@20FPS
	3840*2160@30FPS
	3264*2448@30FPS
	2592*1944@30FPS
	2048*1536@30FPS
	1920*1080@30FPS
	1600*1200@30FPS
	1280*960@30FPS
	1280*720@30FPS
	1024*768@30FPS
	800*600@30FPS
	640*480@30FPS
scanning speed	About a second.

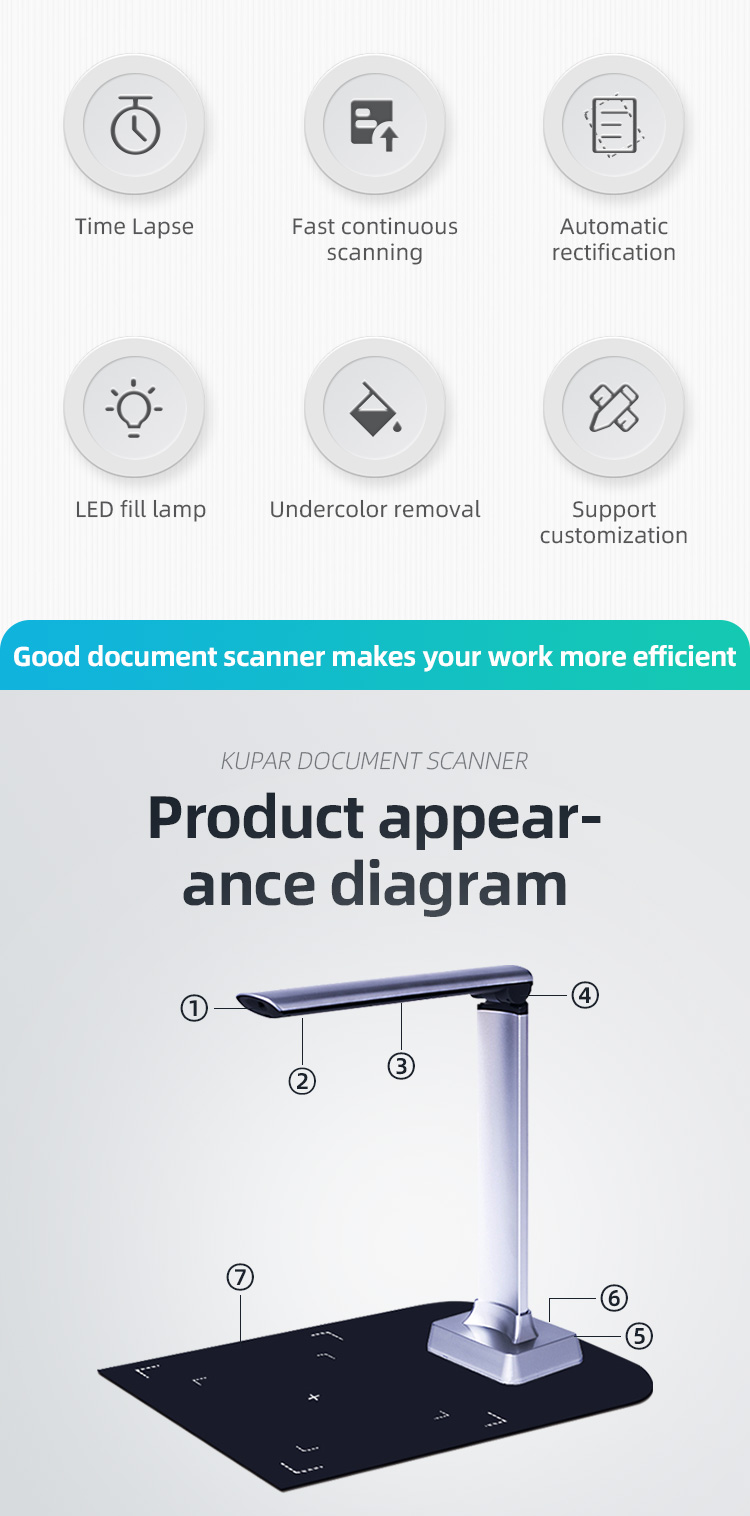

Product appearance	Upright folding, soft base, easy to use
Color digit number	24 bits
shooting angle	90°
interface type	USB2.0 connection

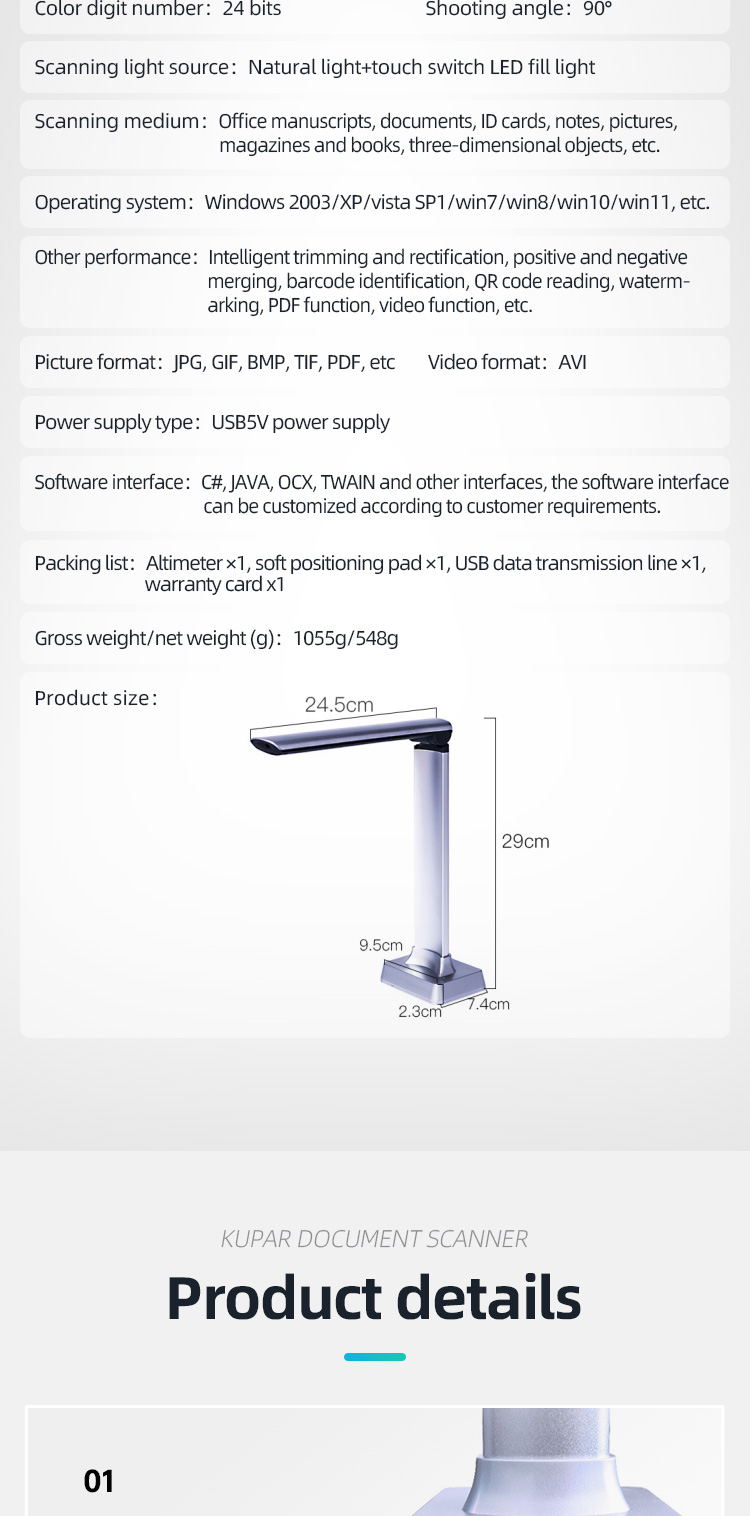

Scanning light source	Natural light+touch switch LED fill light
Scanning medium	Office manuscripts, documents, ID cards, notes, pictures, photographs, magazines and books, three-dimensional objects, etc.
operating system	Windows 2003/XP/vista SP1/win7/win8/win10/win11, etc.
Other performance	Intelligent trimming and rectification, positive and negative merging, barcode identification, QR code reading, watermarking, PDF function, video function, etc.
product usage	File scanning, physical video display record
picture format	JPG, GIF, BMP, TIF, PDF, etc.
document format	PDF、WORD、Excel、TXT
Video format	AVI
Power supply type	USB5V power supply
vision control	Brightness adjustment, saturation adjustment, exposure value adjustment, sharpness adjustment, Color adjustment, gain control, etc.
Scanning mode	Color, grayscale, black and white
fixed mode	Special soft positioning pad for high-altitude shooting instrument
driver	Driverless USB video equipment
software interface	C#, JAVA, OCX, TWAIN and other interfaces, the software interface can be customized according to customer requirements.
System requirements	P4 or CPU of the same level, above 512M, the host needs standard USB2.0 hub or external USB2.0 adapter card MS Direct X9.0 or above.
packing list	Altimeter ×1, soft positioning pad ×1, USB data transmission line ×1, warranty card x1,
Gross weight/net weight (g)	1055g/548g

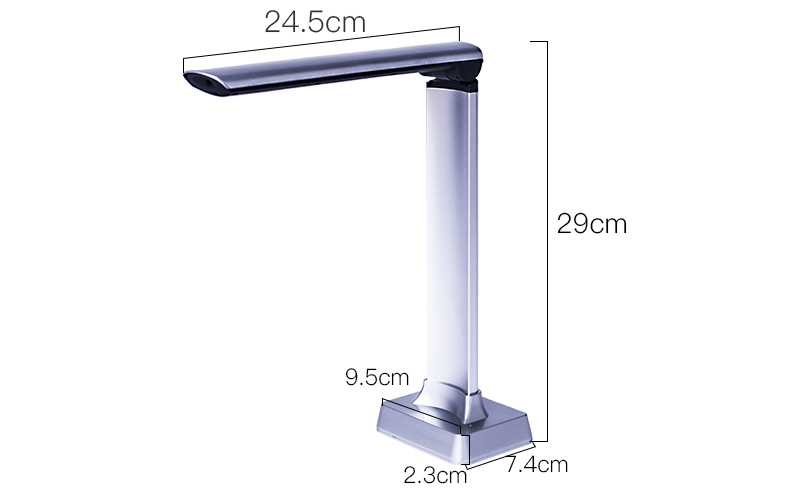

product size
